1. Overview

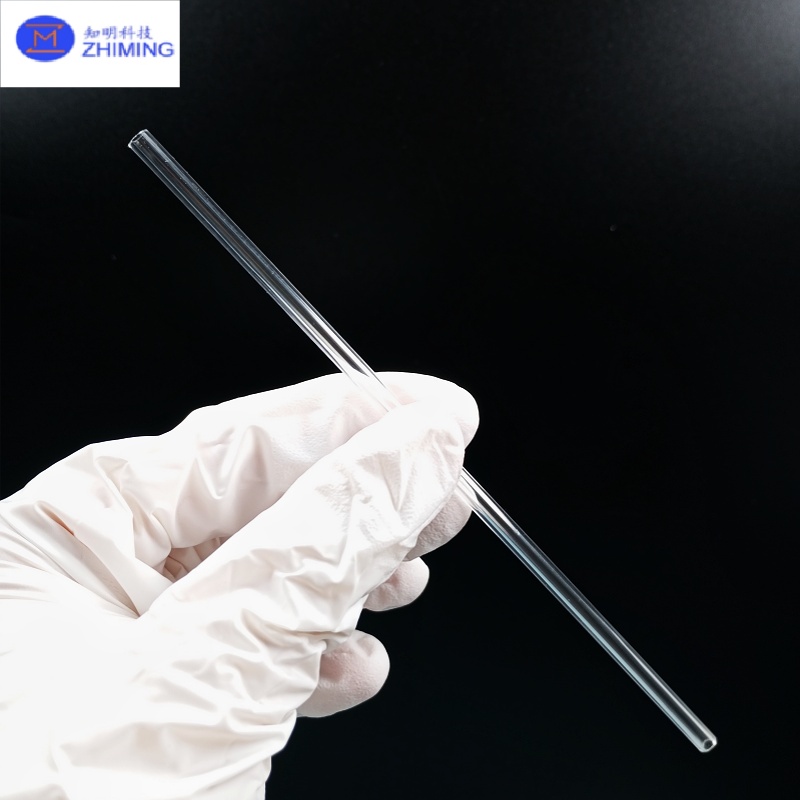

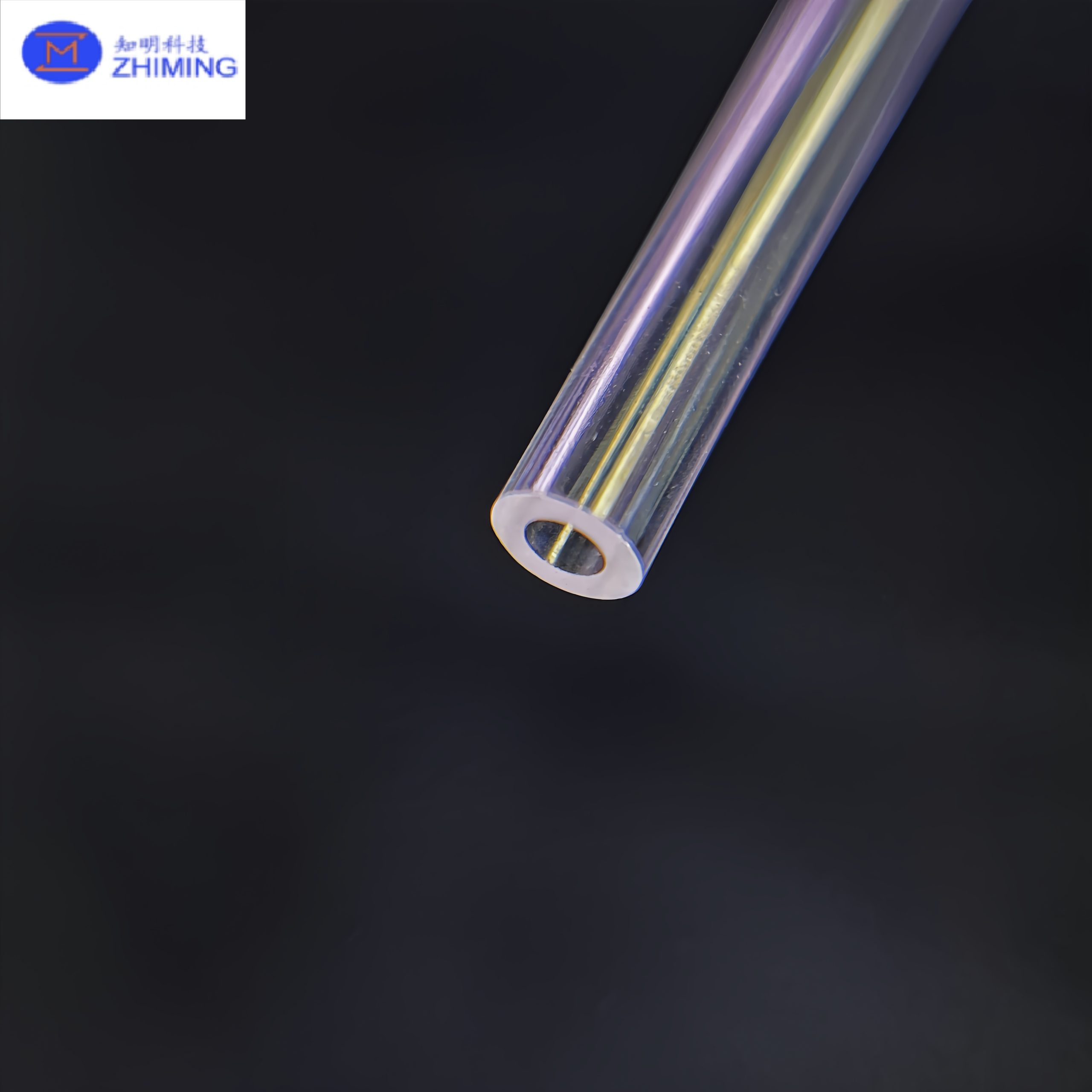

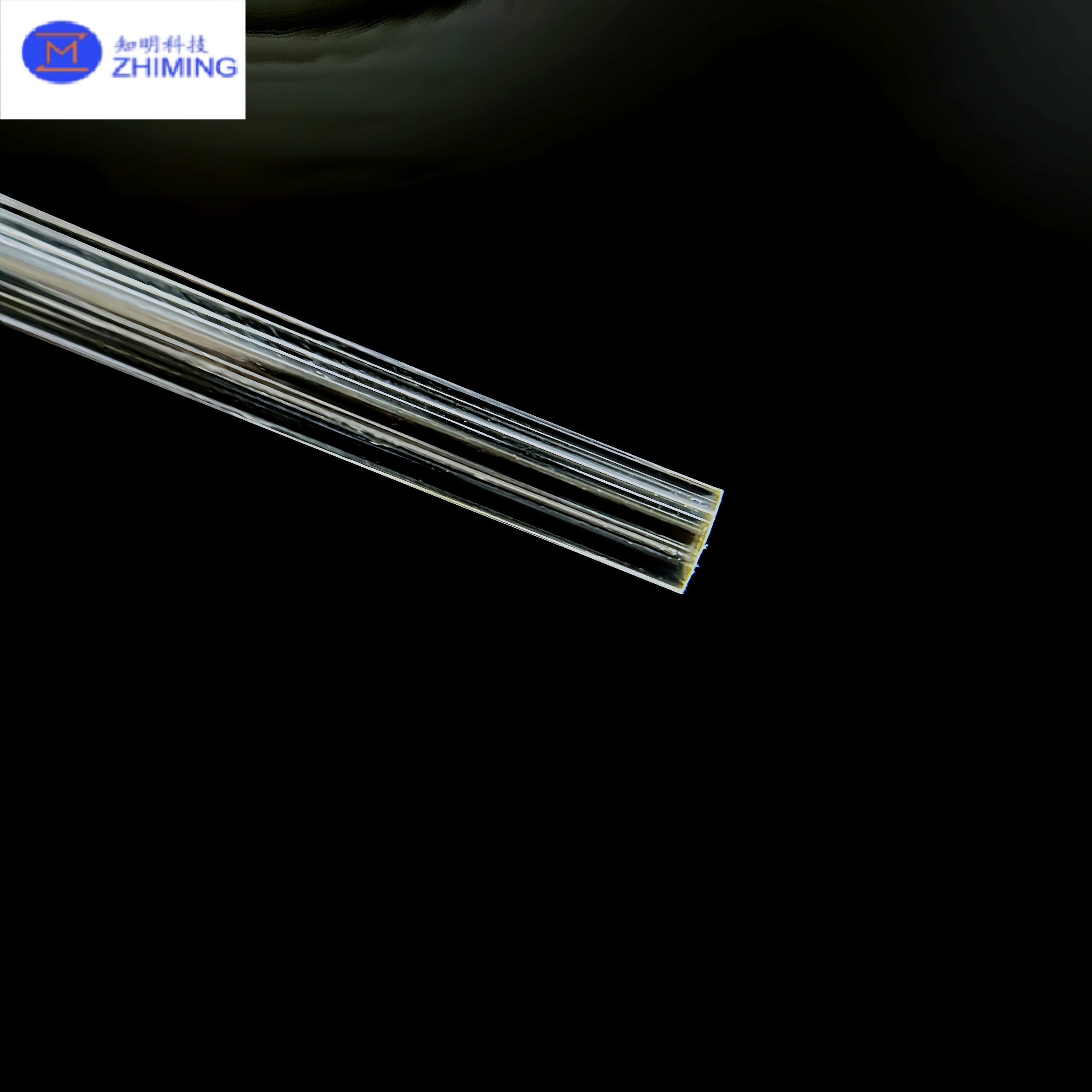

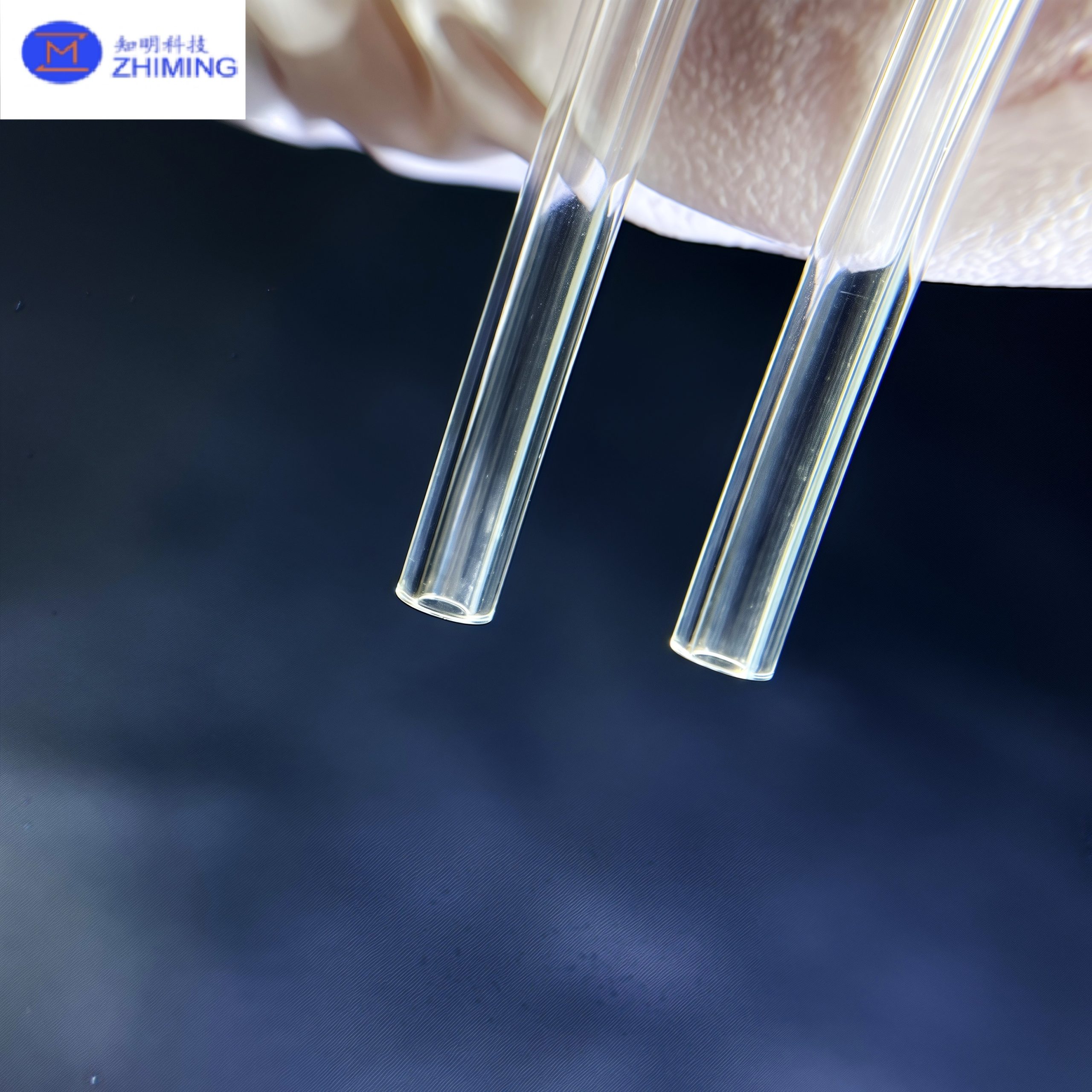

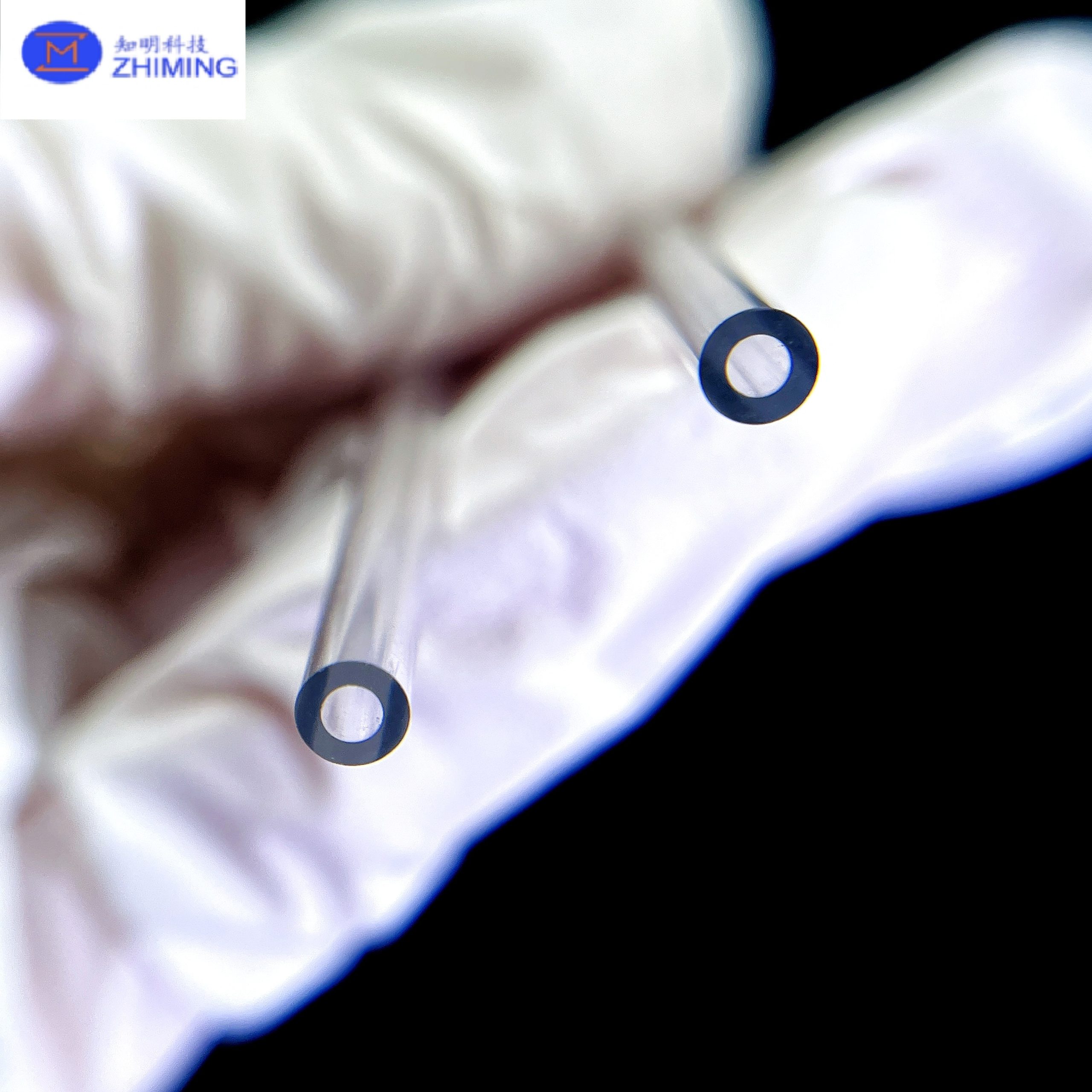

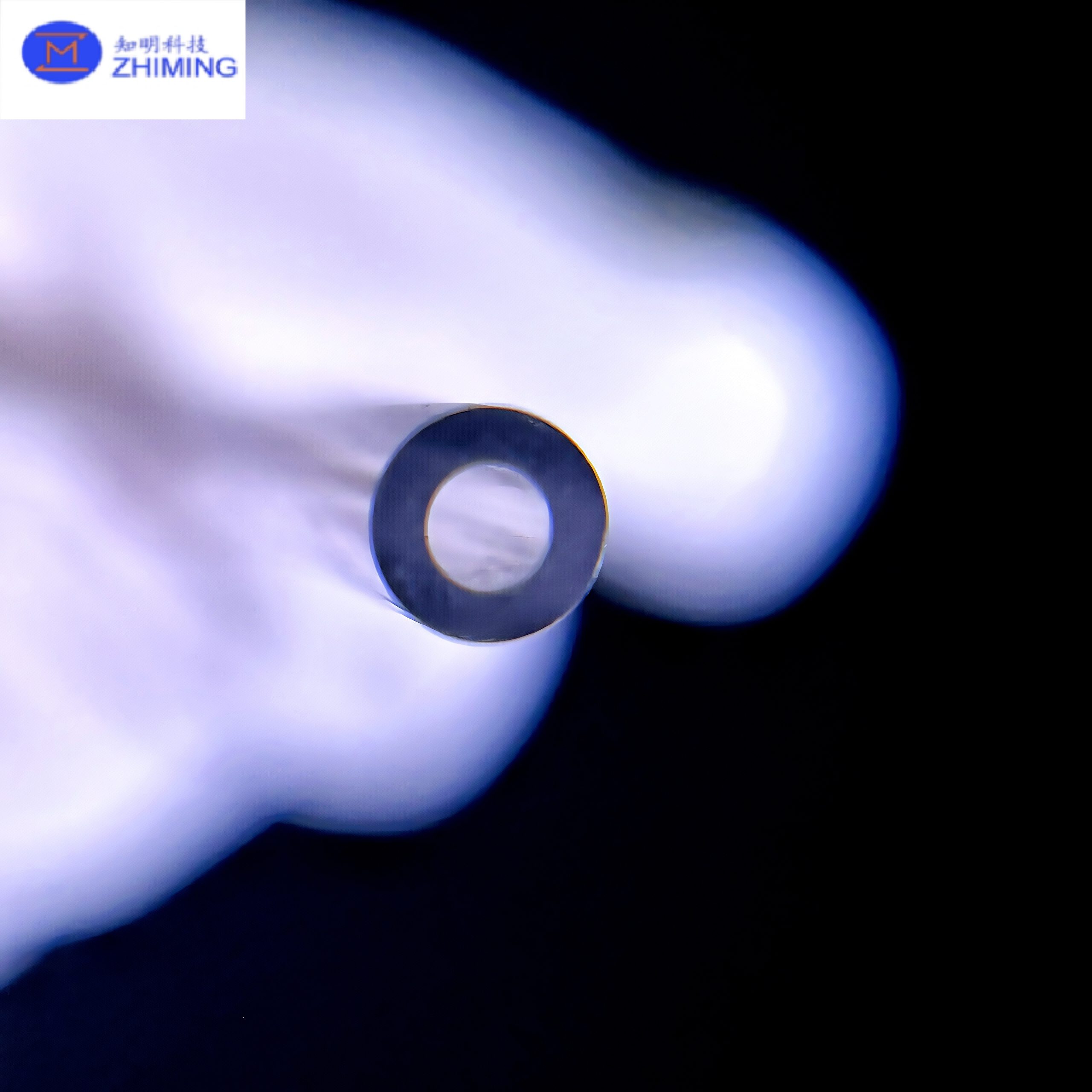

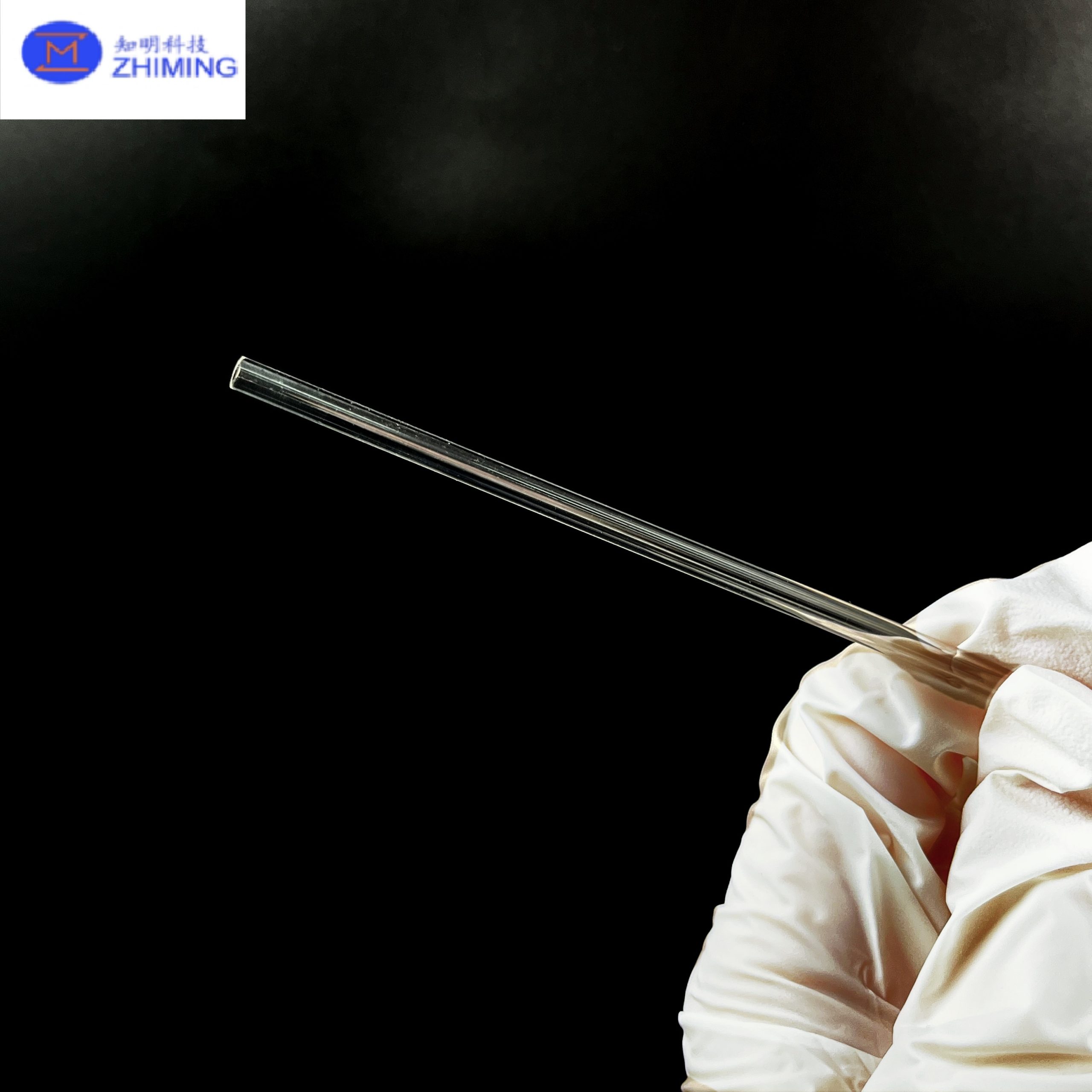

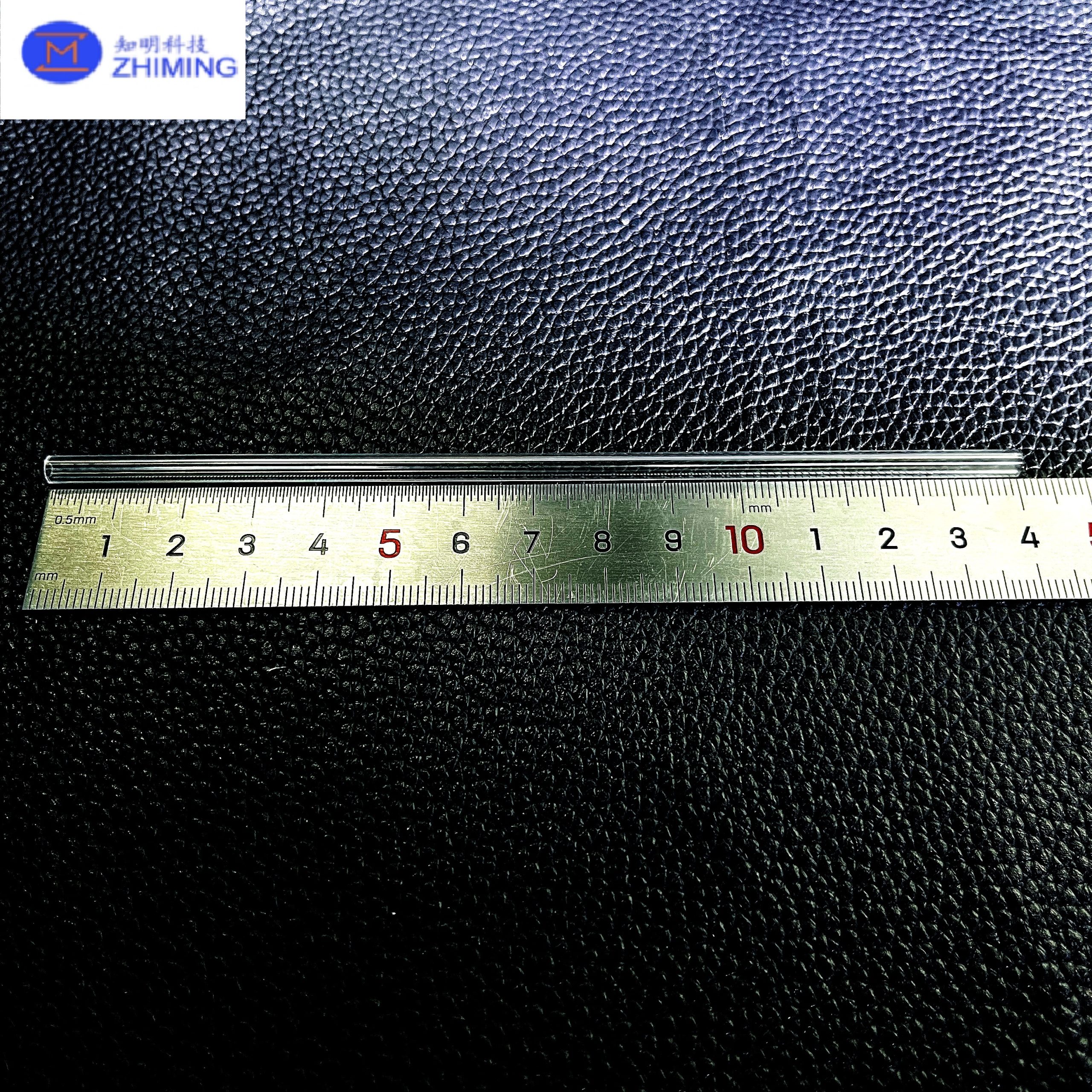

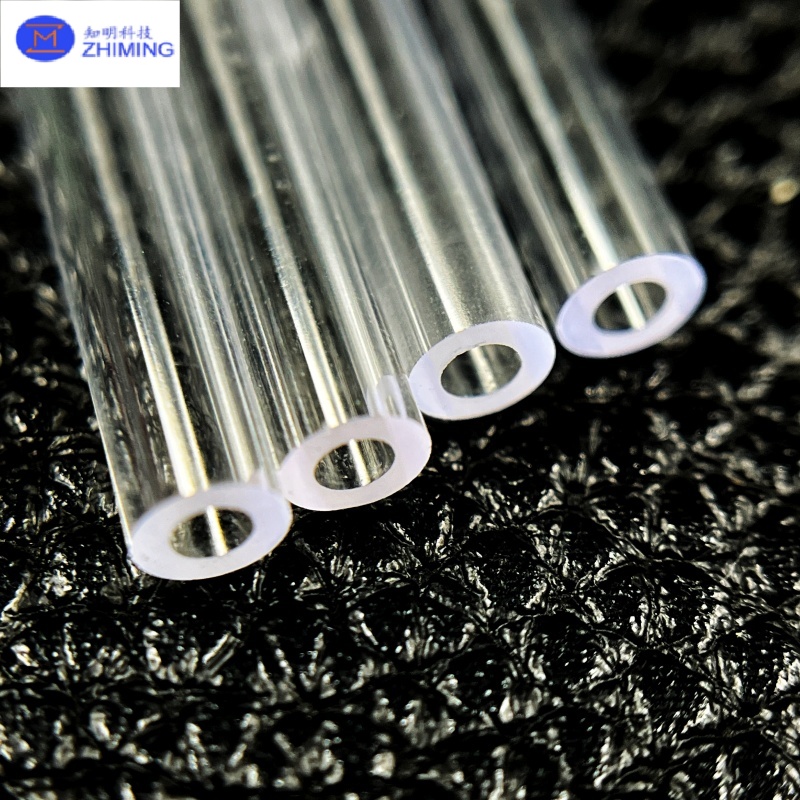

Sapphire Capillary Tubes are high-precision tubular components made from single-crystal aluminum oxide (Al₂O₃). With exceptional hardness, high temperature resistance, and superior chemical stability, Sapphire Capillary Tubes are widely used in semiconductor, medical, optical, and analytical industries.
Compared to glass or quartz alternatives, Sapphire Capillary Tubes provide longer service life, higher purity, and better performance under extreme conditions. They are ideal for applications requiring precision fluid control, optical transmission, and resistance to aggressive environments.
2. Key Features of Sapphire Capillary Tubes
- Ultra-high hardness (Mohs 9), excellent wear resistance
- High temperature resistance up to 1600°C+
- Outstanding chemical inertness (acid & alkali resistant)
- Wide optical transmission (200 nm – 5000 nm)
- Smooth inner surface for precise fluid control
- Customizable dimensions and structures
- Long-term stability in harsh environments
3. Technical Specifications
| Parameter | Value |
|---|---|
| Material | Single Crystal Sapphire (Al₂O₃) |
| Purity | ≥ 99.99% |

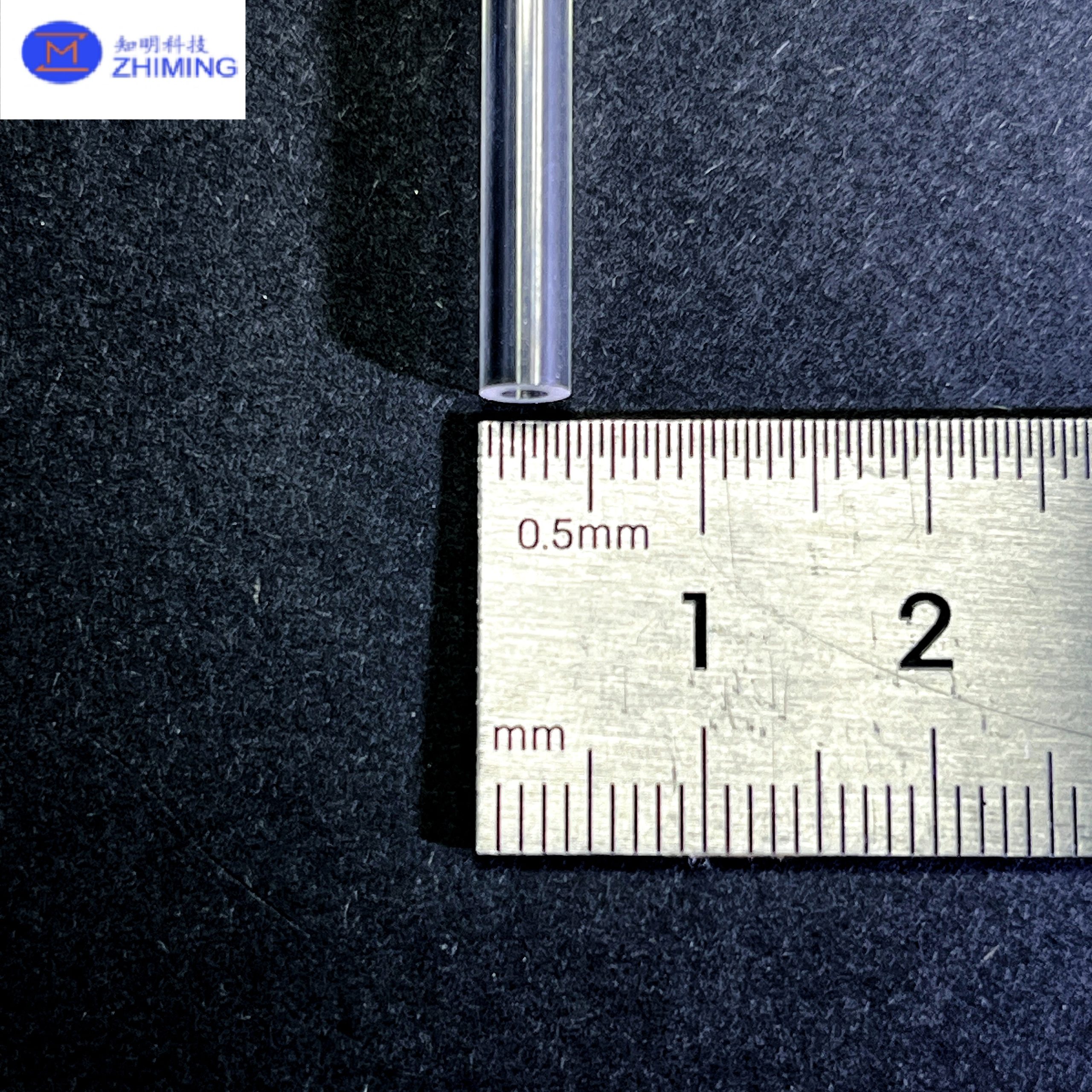

| Inner Diameter | 0.1 mm – 3 mm (custom available) |
| Outer Diameter | 0.5 mm – 10 mm+ |
| Length | Customizable |
| Surface Finish | Ground / Polished |
| Temperature Resistance | Up to 1600°C+ |
| Optical Transmission | 200 nm – 5000 nm |
4. Manufacturing Process of Sapphire Capillary Tubes
Sapphire Capillary Tubes are produced using advanced crystal growth technologies, mainly the Kyropoulos (KY) method and the Edge-defined Film-fed Growth (EFG) method.
The KY method involves growing large sapphire boules from high-purity alumina melt. These boules are then cut, drilled, and polished to form high-precision capillary tubes with excellent surface quality and tight tolerances. This process is ideal for applications requiring optical-grade surfaces and high accuracy.
The EFG method allows direct growth of hollow sapphire tubes through a specially designed die. This process enables efficient production of long tubes with uniform cross-sections and reduced material waste, making it suitable for industrial-scale applications.
After crystal growth, Sapphire Capillary Tubes undergo precision machining, inner bore processing, polishing, and ultrasonic cleaning to ensure high purity and performance consistency.
5. Applications of Sapphire Capillary Tubes
Sapphire Capillary Tubes are widely used across multiple high-tech industries:
🔹 Semiconductor Industry
Used for transporting high-purity gases and chemicals in CVD, etching, and vacuum systems. Sapphire Capillary Tubes ensure contamination-free processing and long-term durability.
🔹 Medical & Life Sciences
Applied in microfluidics, diagnostic devices, and laboratory instruments. Sapphire Capillary Tubes provide biocompatibility and precise fluid control for sensitive samples.
🔹 Optical & Laser Systems
Serve as optical channels, protective sleeves, or beam guides. Sapphire Capillary Tubes support stable light transmission across UV to IR wavelengths.
🔹 Analytical Instruments
Used in chromatography, spectroscopy, and chemical analysis. The smooth inner surface of Sapphire Capillary Tubes reduces adsorption and improves measurement accuracy.
🔹 Aerospace & Industrial Systems
Suitable for extreme environments involving high temperature, pressure, and vibration. Sapphire Capillary Tubes maintain structural integrity under harsh conditions.
6. Customization Options
We offer full customization for Sapphire Capillary Tubes based on your specific requirements:
- Custom inner and outer diameters
- Precision bore processing (polished or fine-ground)
- Length cutting and edge finishing
- Special shapes (tapered, flanged, stepped)
- Tight tolerance control for high-end applications
7. Why Choose Us
- Rich experience in sapphire material processing
- Advanced KY and EFG manufacturing capabilities

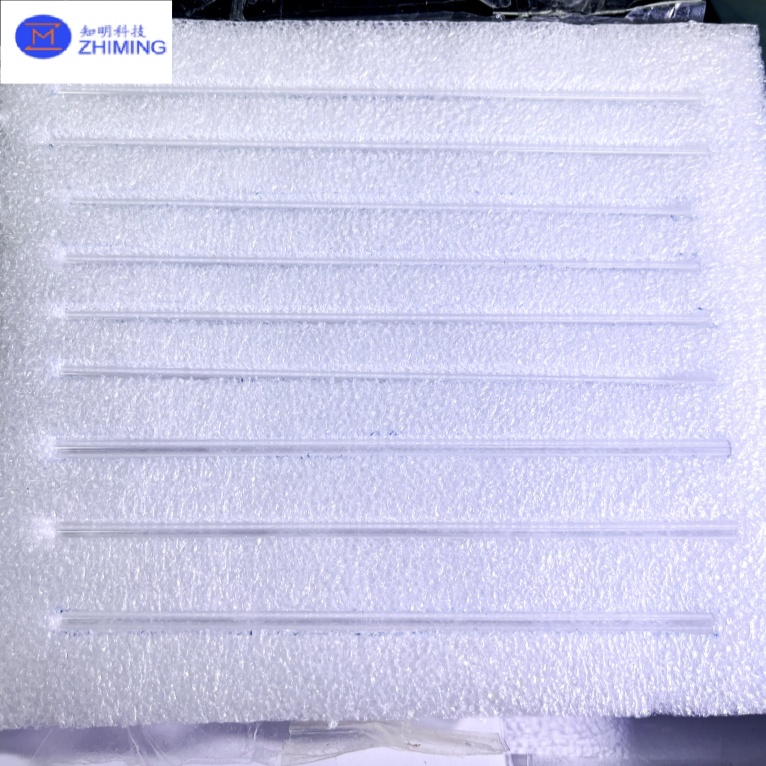

- Strict quality inspection and cleanroom packaging
- Support for small batch and bulk orders
- Fast response and global delivery
8. FAQ – Sapphire Capillary Tubes
Q1: What are Sapphire Capillary Tubes used for?
A: Sapphire Capillary Tubes are used for fluid transport, optical transmission, and high-temperature applications in semiconductor, medical, and analytical industries.
Q2: Can Sapphire Capillary Tubes be customized?
A: Yes, all dimensions including inner diameter, outer diameter, and length can be customized.
Q3: Are Sapphire Capillary Tubes better than quartz tubes?
A: Yes, Sapphire Capillary Tubes offer higher hardness, better thermal resistance, and longer service life.
