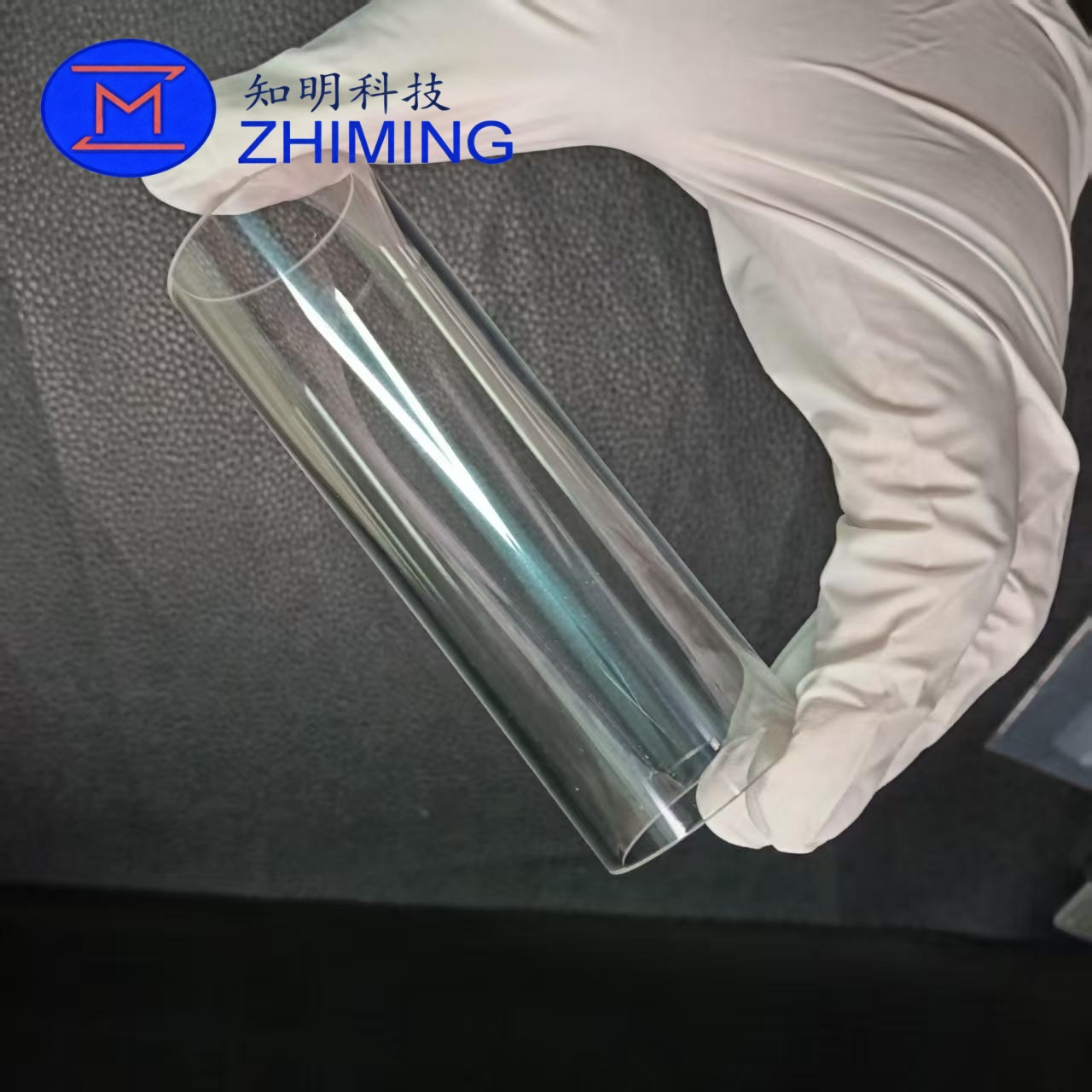

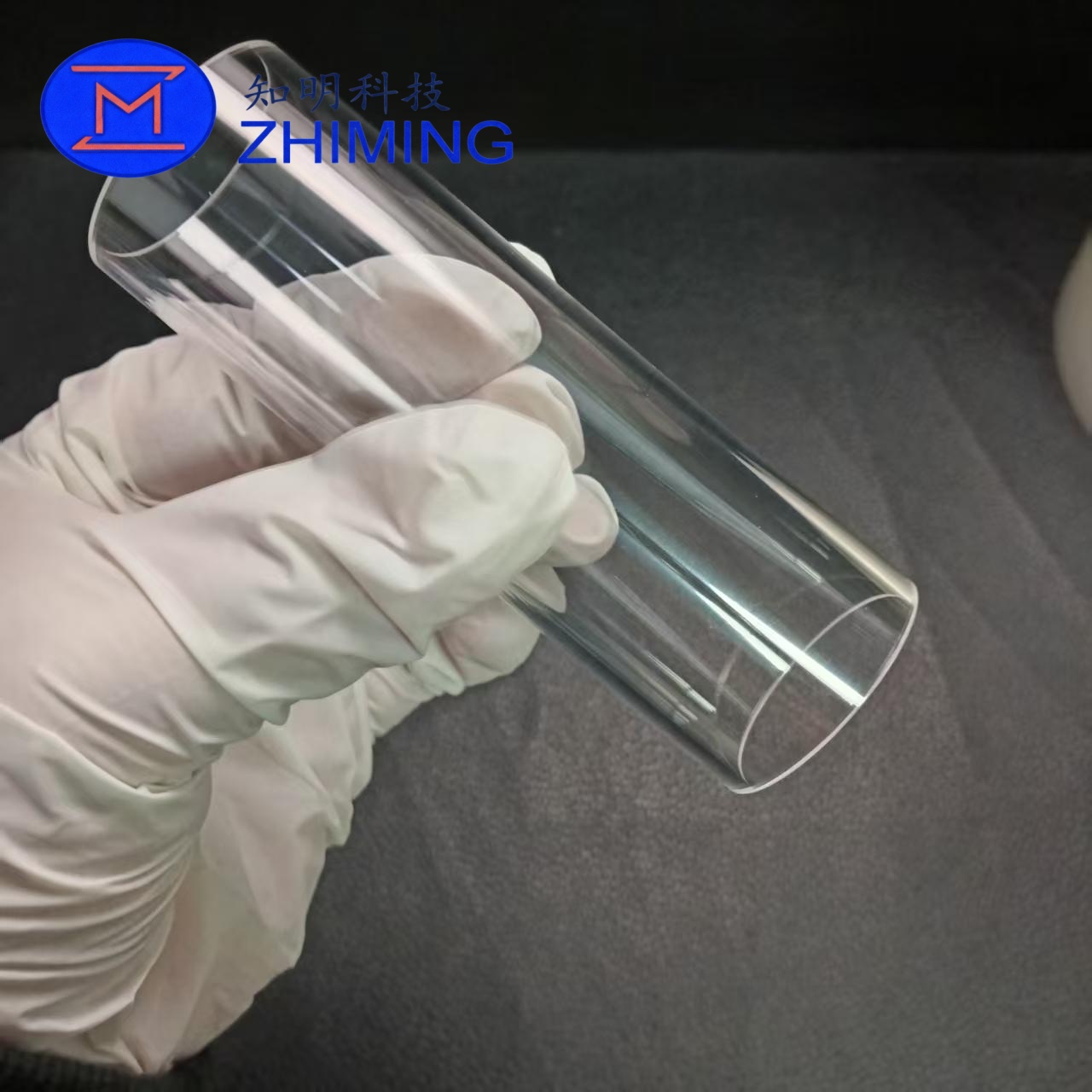

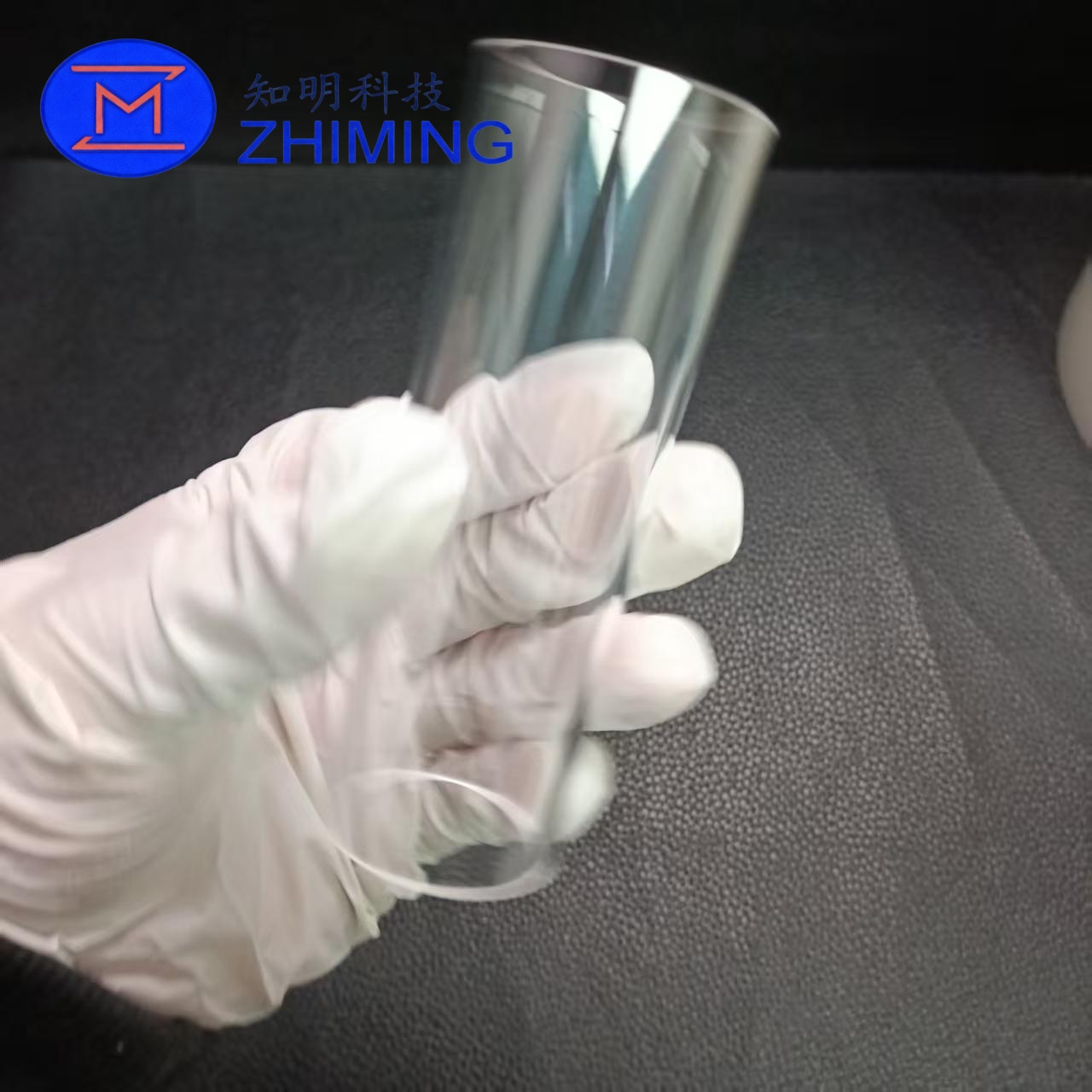

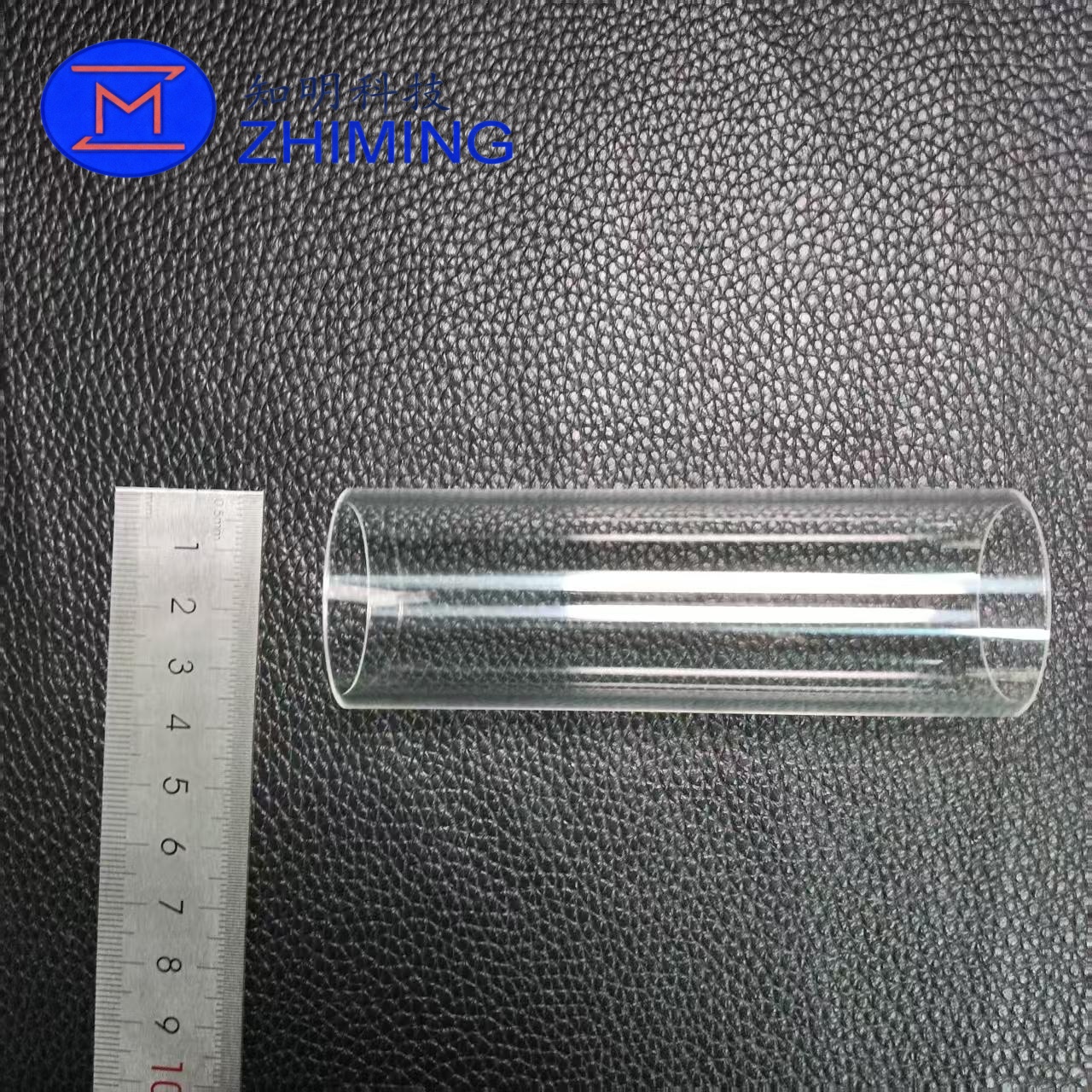

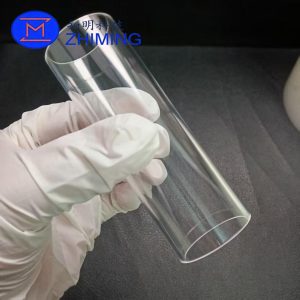

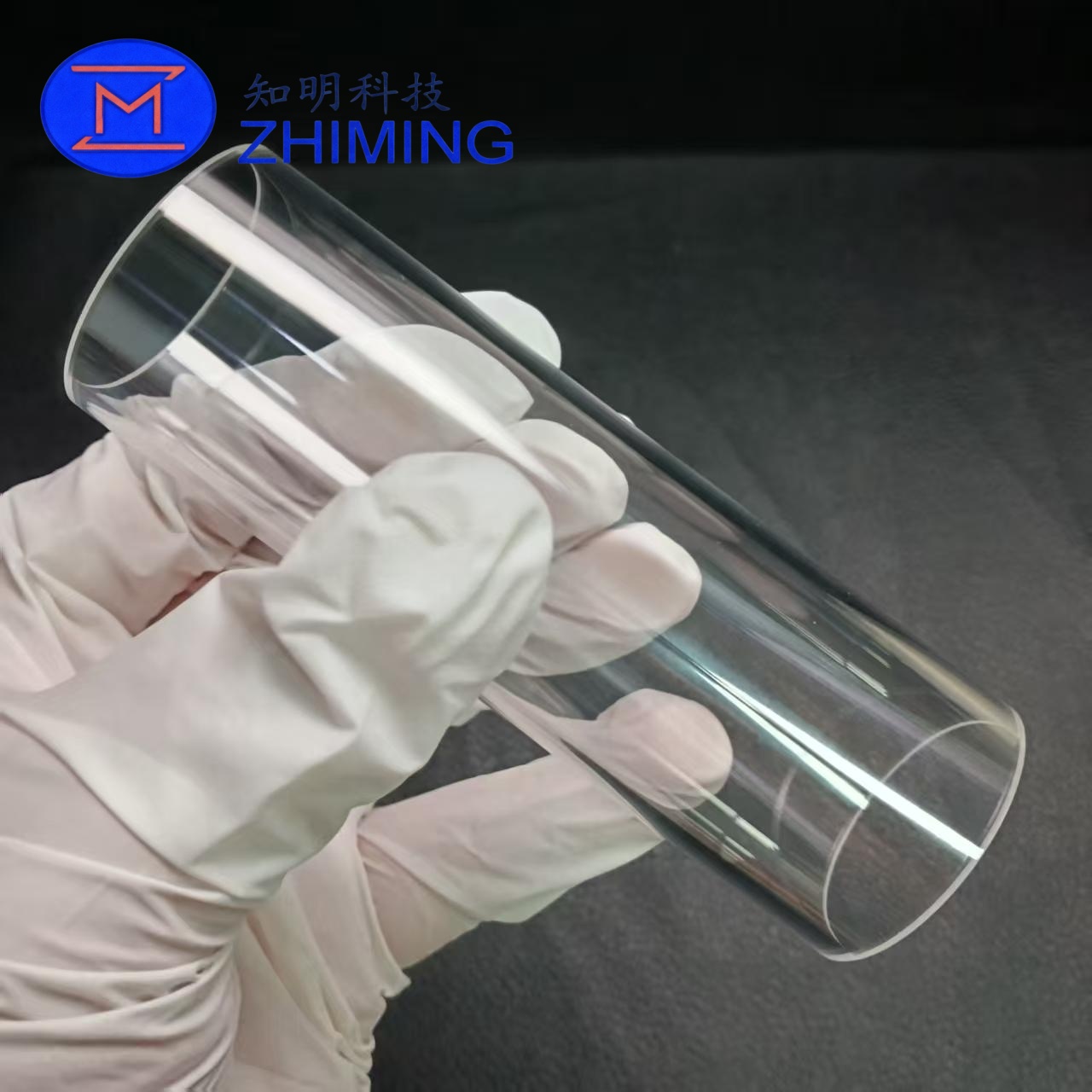

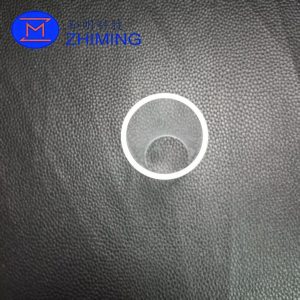

EFG Sapphire Tube – Fully Customizable for Demanding Industrial and Optical Applications

EFG Sapphire Tubes are engineered for applications where standard sizes are not sufficient and material performance must be precisely matched to operating conditions. By utilizing the Edge-Defined Film-Fed Growth (EFG) process, sapphire tubes can be produced with high dimensional accuracy and excellent material uniformity, making them especially suitable for customized designs.

Unlike off-the-shelf sapphire components, EFG-grown sapphire tubes offer exceptional flexibility in geometry, allowing designers and engineers to specify tube dimensions according to real application requirements rather than adapting their systems to fixed sizes. This makes EFG sapphire tubes a preferred choice for advanced optical systems, high-temperature equipment, analytical instruments, and semiconductor-related processes.

Key Advantages

Fully Customizable Dimensions

EFG technology enables sapphire tubes to be manufactured with custom outer diameter, inner diameter, wall thickness, and length. This flexibility allows seamless integration into existing systems and reduces secondary machining or assembly complexity.

Excellent Material Consistency

The EFG growth method ensures uniform crystal structure and stable mechanical properties along the entire tube length, even for long or thin-walled designs.

Extreme Thermal Stability

Sapphire maintains structural integrity and optical performance under extreme temperatures, making these tubes suitable for high-temperature, rapid thermal cycling, and vacuum environments.

Chemical and Plasma Resistance

Sapphire is chemically inert to most acids, alkalis, and corrosive gases, allowing long service life in plasma, chemical processing, and analytical environments.

Optical-Grade Transparency

With appropriate polishing, sapphire tubes provide high transmission from UV to IR wavelengths, supporting applications that require optical access, observation, or laser interaction.

Typical Customization Options

• Outer Diameter (OD): Customizable

• Inner Diameter (ID): Customizable

• Wall Thickness: Customizable

• Length: Customizable (short tubes or long, continuous tubes)

• Surface Finish: As-grown, ground, or polished (inner / outer / both)

• End Faces: Cut, polished, chamfered, or special geometry

• Crystal Orientation: c-axis, a-axis, or customized upon request

Applications

• Semiconductor and plasma processing equipment

• High-temperature furnace and reactor components

• Optical inspection windows and observation tubes

• Laser systems and beam delivery protection

• Analytical instruments (ICP, NMR, mass spectrometry)

• Medical and scientific devices requiring chemical purity

• Aerospace and defense optical or thermal components

Specifications (Reference)

Custom Design Support

We support drawing-based manufacturing and application-driven customization. Whether your application requires unusual diameters, thin walls, extended lengths, or special surface treatments, EFG sapphire tubes can be tailored to meet both functional and environmental demands.

FAQ

Q1: What dimensions of EFG sapphire tubes can be customized?
A: EFG sapphire tubes can be customized in outer diameter, inner diameter, wall thickness, and length. Both short and long tubes are available, and dimensions can be produced according to customer drawings or application requirements. This flexibility allows the tube to fit precisely into existing systems without redesign.

Q2: Is secondary machining required after EFG growth?
A: In many cases, EFG sapphire tubes can be supplied near-net shape, significantly reducing or eliminating secondary machining. However, additional processing such as precision grinding, polishing, or special end-face treatment can be provided when tighter tolerances or optical-grade surfaces are required.

Q3: Can customized sapphire tubes maintain performance in harsh environments?
A: Yes. Customized EFG sapphire tubes retain the same mechanical strength, thermal stability, and chemical resistance as standard products. Even with thin walls or extended lengths, sapphire remains stable under high temperatures, vacuum conditions, corrosive gases, and plasma exposure when properly designed.
